3″ Grooved Butterfly Valve

3″ Grooved Butterfly Valve

Crafted for durability and reliability, the Moro USA 3″ Grooved Butterfly Valve

Key Features:

• Ductile iron body with CF8M stainless steel disc for corrosion resistance and long service life
• 200 PSI working pressure rated for heavy industrial service
• AWWA C606 grooved end connections for fast, tool-free installation
• Dual SS316/SS416 upper and lower shafts for maximum shaft durability
• NBR/EPDM rubber body lining provides a bubble-tight seal
• Quarter-turn carbon steel hand lever with locking mechanism
• Tested to API 598 standard for shell and seat leakage
• Operating temperature range: -4°F to 176°F (-20°C to 80°C)

Product Highlights:

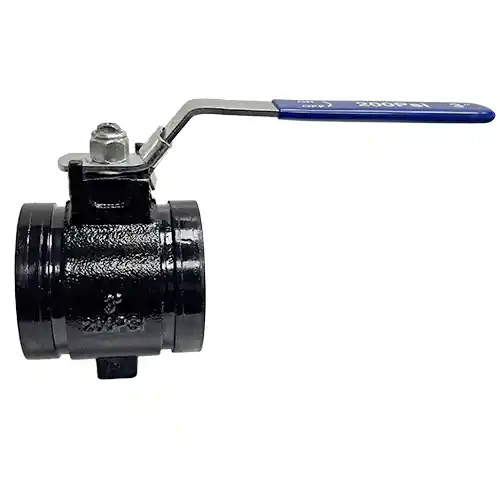

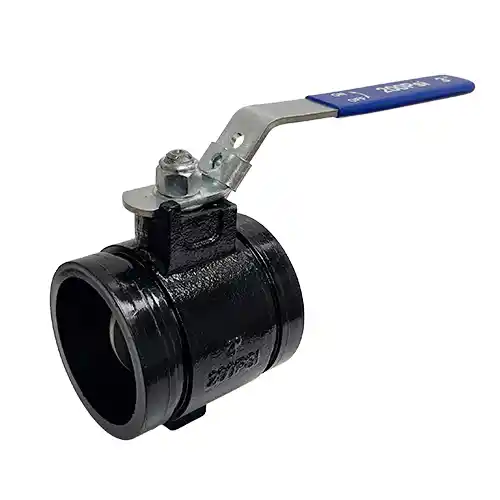

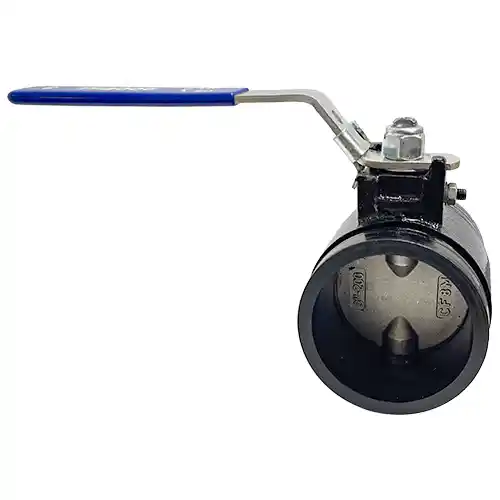

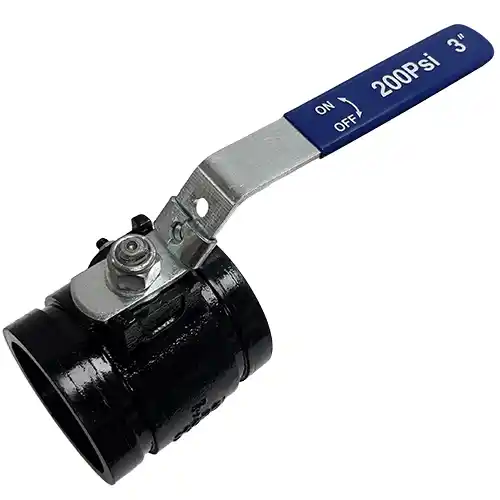

The Moro USA 3″ Grooved Butterfly Valve is a quarter-turn shutoff valve built for demanding industrial and municipal fluid control applications. With a ductile iron body, CF8M stainless steel disc, and dual stainless steel shafts (SS316/SS416), this valve handles continuous service in environments where lesser valves fail early.
The grooved end connection follows AWWA C606, making it fast to install and easy to service in the field. A 90-degree turn of the hand lever opens or closes the flow path completely, with no special tools required. NBR O-rings and an NBR/EPDM rubber body lining provide a reliable seal across a broad range of liquid types, and the valve operates in temperatures from -4°F to 176°F (-20°C to 80°C) with a working pressure of 200 PSI.

This valve ships ready to install. It meets API 598 testing standards and is backed by the same quality engineering Moro USA applies across its full product line.

Applications:

The 3″ grooved butterfly valve is one of the most practical valves in the line for contractors and facility managers working in the field. Here are the applications where it performs best:
• Pump Stations: Pump isolation on vacuum trucks, septic pump stations, and portable pump systems where quick shutoff and easy field service are required
• Water & Wastewater: Isolating equipment sections in municipal water distribution systems, water treatment plants, and lift stations where 200 PSI ratings and AWWA compliance matter
• HVAC & Fire Protection: Controlling flow on industrial HVAC cooling towers, chilled water loops, and fire suppression systems where grooved piping is standard
• Industrial Process: Flow isolation in food processing, industrial wash-down, and general fluid handling where the NBR/EPDM liner handles a broad range of liquid types
• Grooved Piping Systems: Quick-connect applications where technicians need a valve that installs in minutes without flanging or welding
